Phillipshurst Trestle (SLR Trestle #2)

Google Map of Phillipshurst Trestle.
By far the most difficult to access of the Boulder Creek branch San Lorenzo River trestles, though easily spotted via Google Maps, the trestle located 0.2 miles south of Phillipshurst flag-stop is also the longest of all of those found in the San Lorenzo Valley. The original narrow-gauged trestle was built in 1885 by the Pacific Bridge Company for the Felton & Pescadero Railroad, a subsidiary of the South Pacific Coast Railroad. How this trestle was constructed is not known, though it was undoubtedly built of redwood piers and pilings. Unfortunately, all evidence of the original trestle at the site was destroyed when it was broad-gauged.

Phillipshurst Trestle as viewed facing south down the San Lorenzo River.

Phillipshurst Trestle as viewed facing north from the base of the first pier.

Phillipshurst Trestle as viewed facing south from the base of the four pier.

Phillipshurst Trestle as viewed facing north from the third pier.
The trestle was upgraded by the Southern Pacific Railroad sometime prior to June 1907 to support broad-gauged traffic. During this upgrade, the entire trestle was removed and replaced with a modern, prefabricated steel frame truss trestle supported by six 20-foot concrete piers and two concrete curbs. The high number of piers were required since the river was especially broad in this spot, though the river itself rarely flowed between more than the southernmost piers. The southernmost pier sported a large, terraced retaining wall along and in front of it, while two of the center piers had large concrete bases, probably intended to separate out debris so as not to cause a log jam.

Closeup of the first pier of the Phillipshurst Trestle, with large terraced concrete retaining wall.
No extant photographs of the trestle have survived to the present, so it is unclear precisely the configuration of the trestle. It is highly possible that there were between one and three prefabricated truss bridges installed atop the piers, judging by the length of the span crossed. Remnant pieces of redwood, long since cut, remain between the southern curb and the first pier suggesting those, at least, were not spanned with a steel bridge but rather a redwood causeway. Steps also are built into the backside of the first pier, leading under the trestle to the opposite side, where they climb up another set of stairs before continuing up a cement incline toward ground-level. In contrast, the northern curb is simply a shortened pier with a fill behind it. No evidence of an actual concrete curb could be found on the north side.

Stairs climbing up behind the first pier of the Phillipshurst Trestle.
Like the rest of the Boulder Creek branch, the steel bridges were removed in 1934 after the branch had shut down. The piers themselves remain, however, a testament to the engineering quality of turn-of-the-century bridge builders. Indeed, the San Lorenzo Valley Water District still runs a pipe over the bridge piers through hooks installed on the east side of the piers.

The southern curb of the Phillipshurst Trestle.
Northern approach to the Phillipshurst Trestle, from the end of River Road.
The northern curb/pier of the Phillipshurst Trestle with fill behind it.

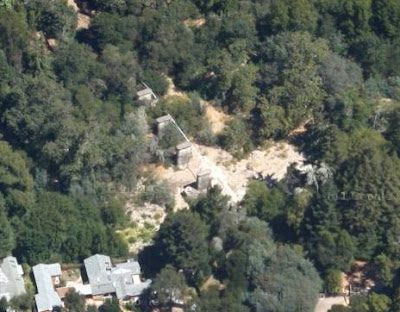

Google Map satellite view of the Phillipshurst Trestle.
Accessing the site is extremely difficult unless one knows the owners of the adjacent properties. The site is accessed directly from the south through a gate at 10390 California Drive in Ben Lomond. Though the gate blocks access, the trestle itself is entirely on non-residential property and can be seen, albeit barely, through the gate. From the north, the trestle is only accessible via 2005 River Road, which is both a gated community and a gated home. However, if one can gain access this way, it is the most direct. Again, the property is not owned by the adjacent home, but access is blocked. With those two methods generally barred, the next easiest is by walking down to the river via 10350 Highway 9 where a large clearing is easily accessible from the highway. From there, follow deer paths down to the river, though be careful because the terrain is treacherous. There are places where the river can be crossed by hopping over stones. This is recommended rather than sticking to the western bank as the eastern bank is mostly level and dry. The piers are easily accessed once the eastern bank is reached.
